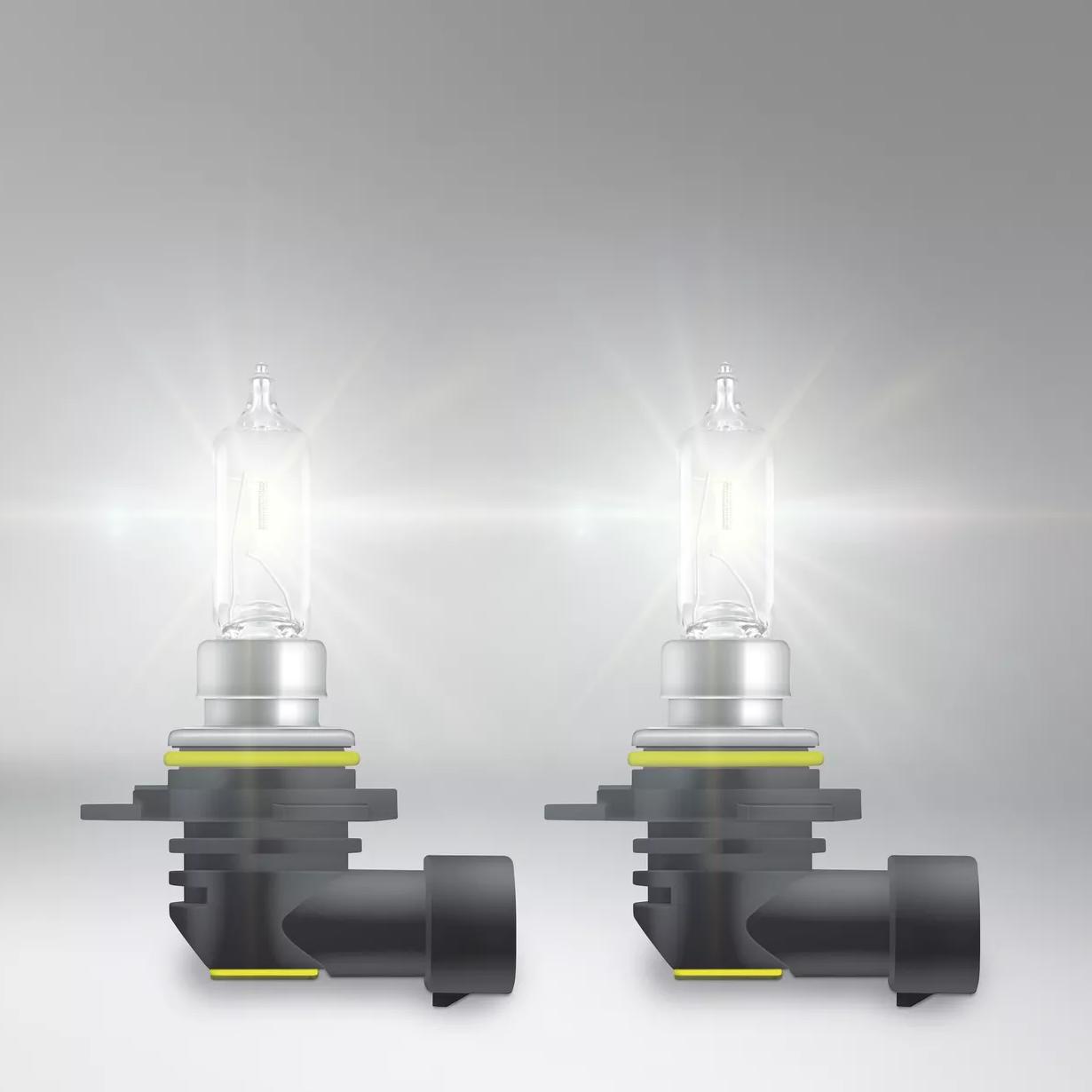

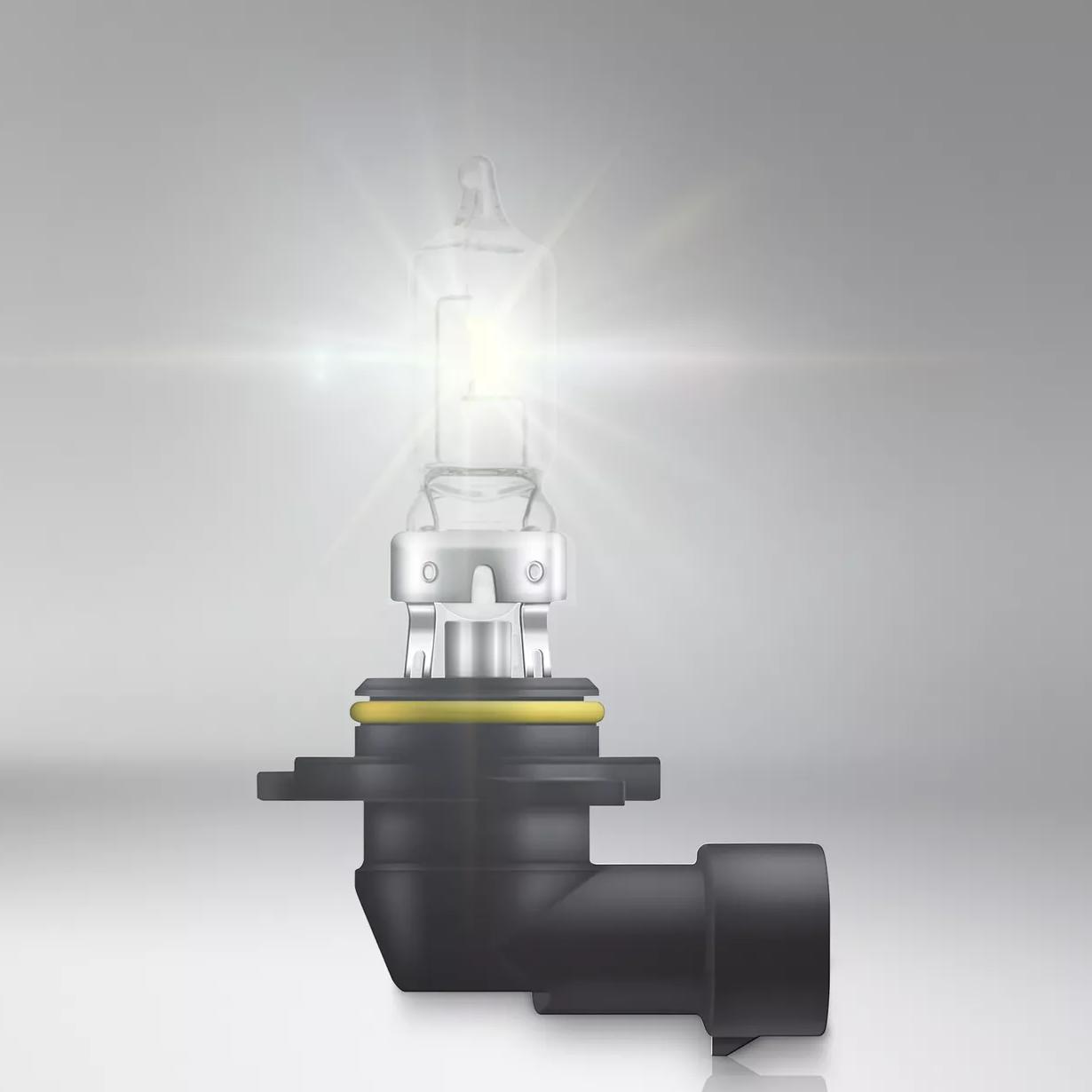

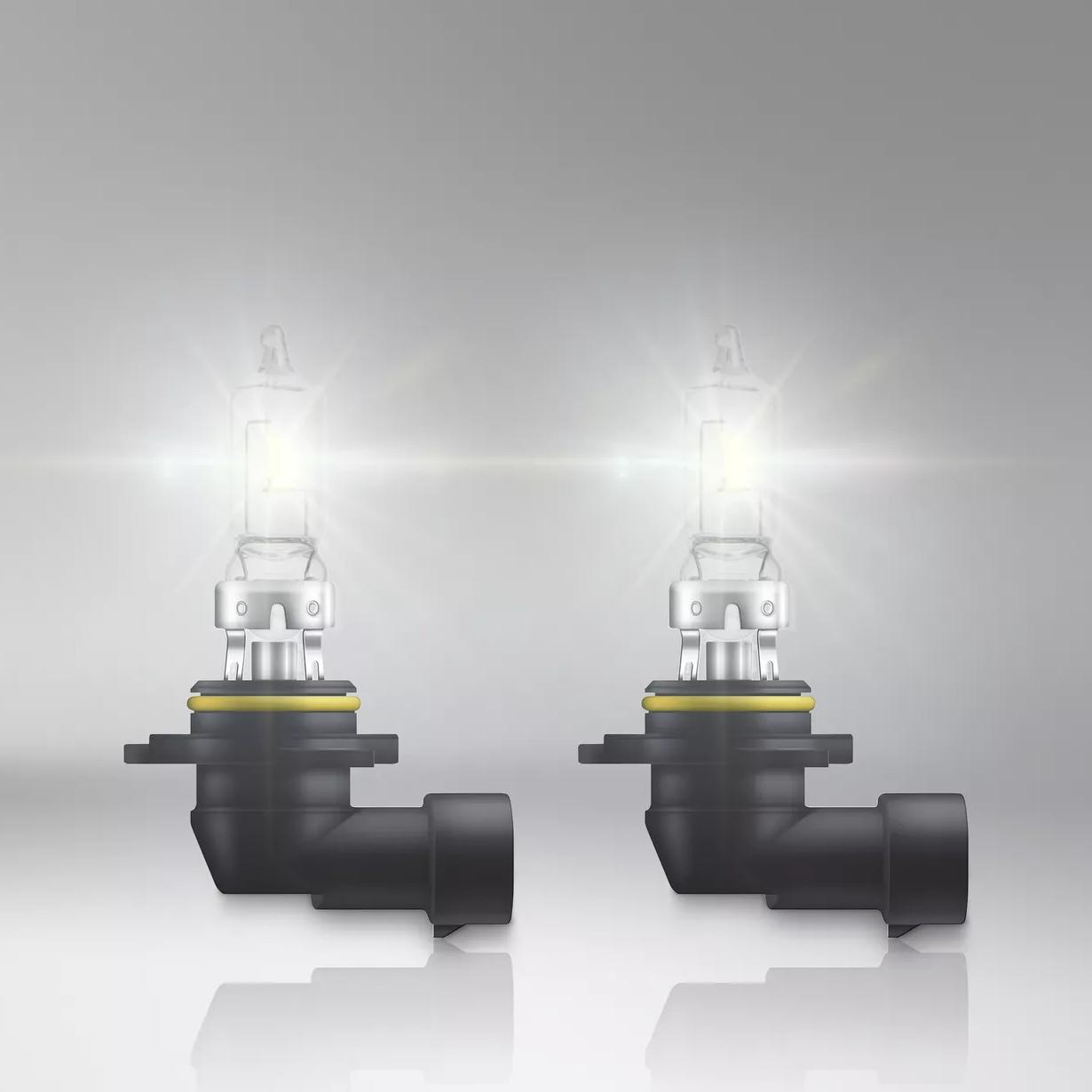

ORIGINAL LINE HIR2

Name: ORIGINAL LINE
Brand: OSRAM

具有高性价比的原厂配件

欧司朗原厂配套系列卤素灯泡有令人赞叹的性能，符合标准要求，可靠且高性价比。无论是作为标准配件还是原厂配套，它已经被搭载于知名整车制造商的数百万辆新车。原厂配套系列用可靠的原厂配件质量和广泛产品范围，为您证明其物有所值。

HAVE ON ADEQUATE GLOVES WHEN MOUNTING AND DEMOUNTING

OPERATION ONLY IN LAMP WITH PROTECTIVE COVER

SWITCH OFF HEADLIGHTS BEFORE CHANGING LAMPS

USE ADEQUATE EYE PROTECTION WHEN MOUNTING AND DEMOUNTING

ACPEIP marking China RoHS below the limits

数据参数表

工具

更多信息请下载

联系我们

技术数据

Product information

Application (Category and Product specific)

Halogen headlight lamp

General Product Information

Order reference

9012

电参数

功率输入

60 W

标称电压

12.0 V

标称功率

55 W

测试电压

13.2 V

输入功率容许偏差

±15 %

光度数据

光通量

1875 lm

光通量容许偏差

±15 %

Physical Attributes & Dimensions

直径

12.1 mm

产品重量

19.65 g

灯头 (标准名称)

PX22d

长度

75.0 mm

寿命

Lifespan B3

500 hr

使用寿命 Tc

870 hr

功能

Technology

HAL

认证与标准

ECE 分类

HIR2

Environmental & Regulatory Information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

09-07-2024

Primary Article Identifier

4062172395342 | 4062172189156 | 4062172386999 | 4062172384186 | 4008321863997 | 4062172294720 | 4062172372251 | 4062172404501

Candidate List Substance 1

No declarable substances contained

Declaration No. in SCIP database

In work

包装信息

EAN	单位	件	尺寸	重量	音量
4008321863997	FS FOLDING BOX	1	47mm x 47mm x 71mm	26.00g	0.16dm³
4008321864000	BD BUNDLE	10	235mm x 94mm x 70mm	260.00g	1.55dm³
4008321864017	VS SHIPPING BOX	100	478mm x 248mm x 164mm	2832.00g	19.44dm³
4062172189156	FS FOLDING BOX	1	47mm x 47mm x 70mm	28.00g	0.15dm³
4062172189163	BD BUNDLE	10	235mm x 94mm x 70mm	288.00g	1.55dm³
4062172189170	VS SHIPPING BOX	100	485mm x 245mm x 156mm	3330.00g	18.54dm³
4062172294720	BLI BLISTER	1	135mm x 95mm x 40mm	32.00g	0.51dm³
4062172294737	VS SHIPPING BOX	10	335mm x 115mm x 146mm	420.00g	5.62dm³
